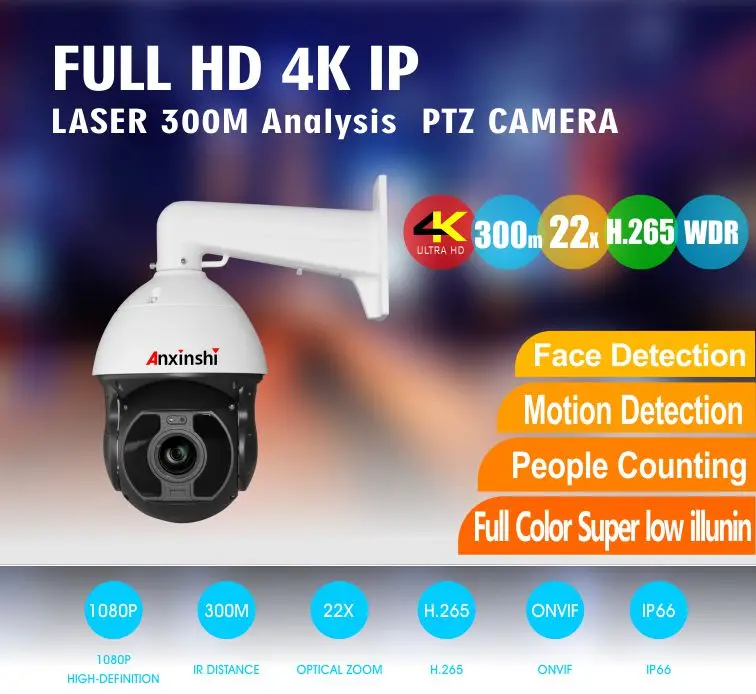

4K Outdoor HD IR 300M with low illumination and WDR IP Speed Dome PTZ Camera

FOB Reference Price:Get Latest Price
$1.00 - $899.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AST
Model Number:
ASRIH699-022-4622
Type:
IP Camera
Style:
Dome Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Image Sensor:
1/1.7" progressive scan, Sony IMX226 CMOS
Effective Pixels:
12megapixel,
Horizontal Resolution:
12megapixel,
Min. Illumination:
Colour: 0.06 lux (F1.5,AGC ON) 0 lux with IR
Zoom:
22X , f=6.5~ 143 mm, Angle of View (H) 56.7° (wide) ~ 3.07° (tele)
Night vision distance:
300M
SNR:
≥50dB(AGC OFF)
Certificate:
CE FCC RoHs
Product name:
ptz camera price
ptz camera:
ptz ip
Technology:
NetWork
Supply Ability
Supply Ability:
100 Piece/Pieces per Week Payment method depend on the different country
Packaging & Delivery
Packaging Details
Standard paper box + carton packing for the ptz ip
Port
Shenzhen
Video Description

4K Outdoor HD IR 300M with low illumination and WDR  IP Speed Dome PTZ Camera

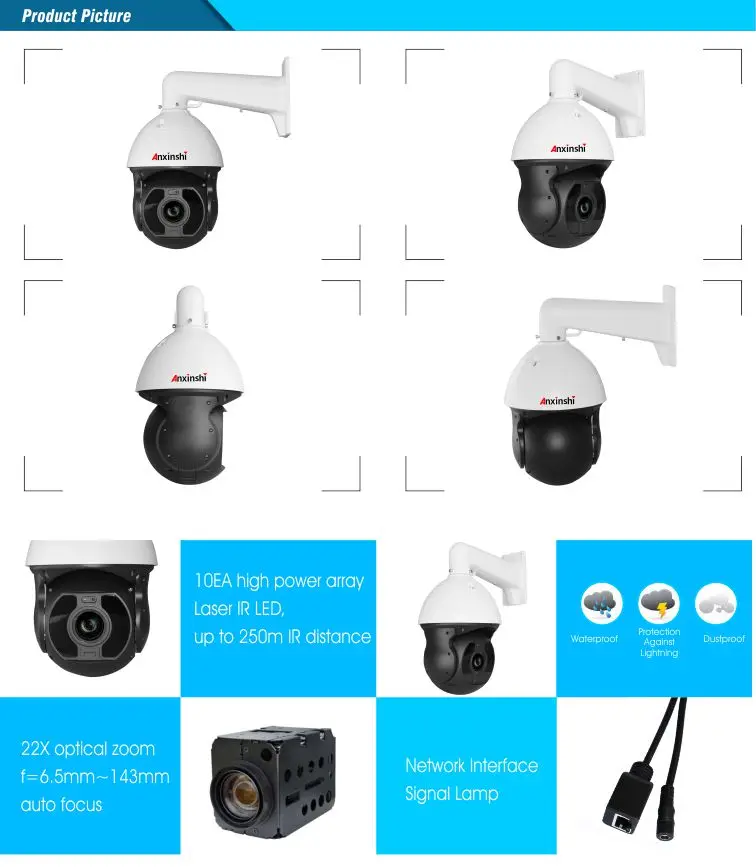

Product Description









Camera:

1.1/1.7" progressive scan, 12megapixel, Sony IMX226 CMOS
2.22X optical zoom, auto focus f= 6.5~ 143 mm Angle of View (H) 56.7¡ã (wide) ~ 3.07¡ã (tele)
3.12 Megapixel image
4.True Day/Night, 3D DNR, Super WDR
5.Backlight compensation, and auto gain control (AGC)
6.Electronic Image Stabilization

Network Features:
1.Main Stream: 12MP (4000¡Á3000): Max. 20 fps; 4K (3840¡Á2160): Max. 30 fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4 , API
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x

Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Smart Analysis function : Behavior Detection Intrusion, crossing line, motion detection , Face detection, People counting,Audio detection
2. Imported array smart Laser IR , auto adjust zoom according to different distance
3. IR range 300M
4. Highest ESD protection against lightning and power surges.
5. 360 degree continued rotation, manual pan speed 0.05~240°/S, manual tilt speed 0.05~120°/S, preset speed 300°/S.









Form parameters
ModeName and DescriptionStarlight illumination 4K HD 22X IP  Analysis Smart Laser IR Speed Dome Camera
ASRIH699-022-4622
CameraImage Sensor 1/1.7" progressive scan,  Sony  IMX226 CMOS
Effective Pixels 12megapixel,
Min. IlluminationColor: 0.06 lux (F1.5,AGC ON) 0 lux with IR
Zoom22X ,  f=6.5~ 143 mm,  Angle of View (H) 56.7° (wide) ~ 3.07° (tele)
Day/NightDay / Night / External control(IR Cut Filter)
SNR≥50dB(AGC OFF)
WDRDigital WDR,≥120dB
AGCAuto / Manual
White balanceAuto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise ReductionDNR,3DNR
Shutter speed 1/6 s ~ 1/100000 s
NetworkVideo CompressionH.265 Main Profile/H.264 Main Profile/M-JPEG
StreamsDual streams
Frame RateMain stream:
12MP (4000*3000): Max. 20 fps; 4K (3840*2160): Max. 30 fps
Sub-stream:
1080P (1920*1080):Max.60 fps;720P (1280*720):Max.30 fps;D1 (720*576):Max.15 fps
MJPEG:
1920*1080, 1280*720, Close
BitrateCBR/VBR, bitrate:32Kbps~10Mbps variable
Audio CompressionG711,PCM
P2PAndroid,IOS
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Motion detectSupport
Privacy Zone MaskingSupport
OnvifOnvif 2.4
Network10/100M Base-TX Ethernet, RJ45 Connector
Mini SD CardUp to128GB(Optional)
IR Luminary Smart Array laser, 10 pcs pcs Laser
Night vision distance 300M
Lamp control Auto, Manual, by Zoom
Dome FeaturesCPU Type32 bit ARM CPU
Address0~255(soft address and hard address)
Pan Range360° continued rotation
Tilt Range0~90°(Auto Flip)
Manual pan speed0.05~240º/S
Manual tilt speed0.05~120°/S
Preset speed300°/S
Actual preset Accuracy±0.10°
Preset points256
Other function4 Tour, Intelligent Three dimensional Scan, Manual continued Auto Scan
Intelligent power
off real time memory
automatic save functions setting ,automatic wake up tour function
GeneralWork temperatureExternal–20℃~60℃
Work Humidity0%~90% (Non condensing)
Power DC24V/25A±10%;
Consumption< 50W









Packaging & Shipping

 Packaging: Standard paper box packing + carton packing
 Shipping:  3-7days since  payment arrived





Connection







Our Services



OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.



Company Information

Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
